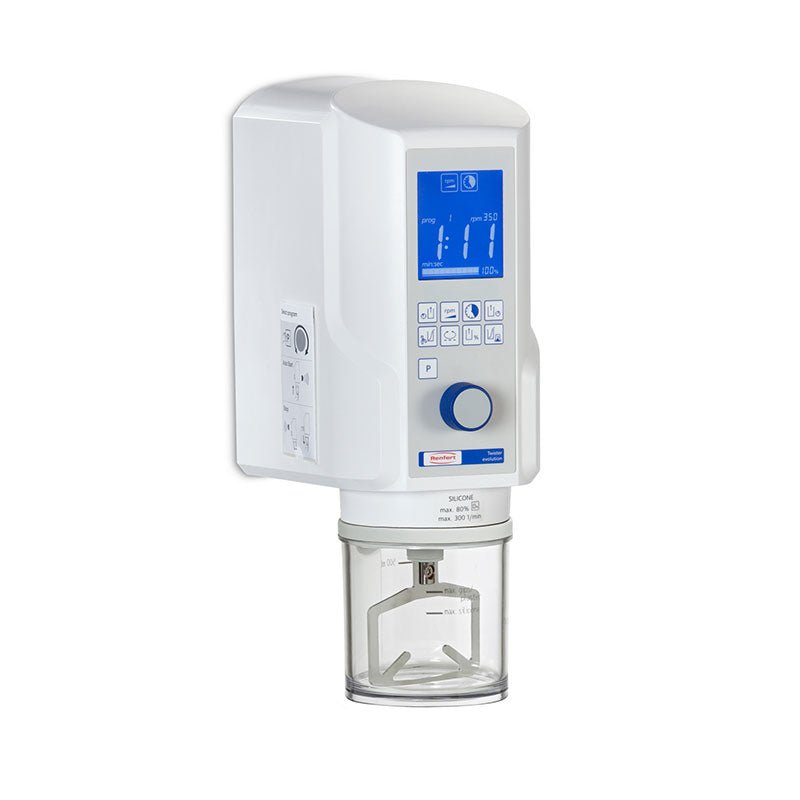

Twister Evolution Mixer Renfert Coating and Plaster

Twister evolution, a vacuum mixer contains.

High torque under vacuum mixer which is equipped with a membrane pump to produce the void and which offers eight programmable mixing functions.

• Reliable mixture of large quantities thanks to the high torque.
• Flexible use for plaster, coverings, duplication materials and algine.
• Reduction of micro-bubble training thanks to the possibility of gradually paying the vacuum from 70 % to 100 %.

Technical advantages:

• Programming: the Twister Evolution has more than 100 programs mixing that can be defined as needed.
• Pre-malaxing: the premalaxing function guarantees constant results as much for plaster that for coatings.
• At the same time, the mixture time decreases and the inhalation of potentially harmful dust is avoided.
• Pre-old: The unwanted reaction gases of the coatings are sucked up before the main mixing phase thanks to the pre-video function.
• Main mixing: the powerful engine From the Twister Evolution maintains the mixing speeds adjusted without problem, whatever the material, the quantity of it and the size of the bowl.
• Change of direction of rotation : To improve the wetting of the powder, the dry lumps are broken by reversing the direction of rotation.
• Post-video: with the post-video function, the Twister evolution prevents gas inclusions that form later on the surface of the mixture.

Data techniques:

• Voltage sector: 110 V / 240 volts.
• Network frequency: 50/60 Hz.
• Absorbed power: 180 VA.
• 16L/min vacuum pump.
• Max empty: ~ 890 Mbar.
• Absorbed bowl pressure: 80 mbar.
• Reduction of vacuum: 70 - 100 %.
• Rotation speed: 100 - 450 rpm.
• Footless size (LXLXP): 152 x 285 x 235 mm.
• Size with foot: 230 x 640 x 295 mm.
• Footless weight: 5.2 kg./span>
• Optional foot.

Delivery : 1 twister mixer evolution with 500 cc bowl - with.

Available 110 V or 240 V.
